英文型号:MODLE

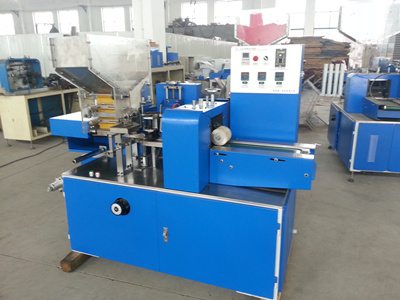

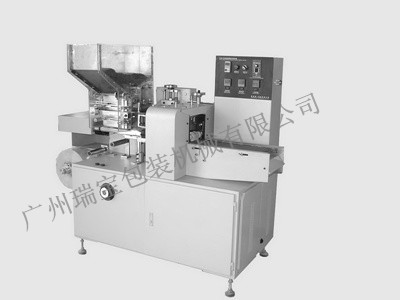

SB42 MULTIPLE STRAWS AUTOMATIC PACKING MACHINE
SB42全自动吸管多支包装机用于对不同管径、长度、数量的吸管进行自动制袋包装,制袋系枕式。整机由料斗、下管装置、传动系统、放膜装置、制袋器、中封牵引装置、横封切断装置、出料输送装置、及电气控制部分组成。该机具有较高的自动化程度和包装生产速度,管计数、走膜、包装、制袋一次完成。设备操作调整方便;枕式包装外形美观。
This is a reliable ,high-speed and high efficiency device for multiple straws fully automatic packing .It can be used to pack straws of different diameter or length、quantity into an auto produced bag..The bag is pillow shape.It is composed of the hopper、 feeding straws device、 driving system、counter、film pay-out device、bag making device、hauling device for sealing the middle of bag、cutter、and conveyor、etc.It is easy for operation.The shape of pillow is very pretty.
特点:
-
计数、走膜、包装、制袋一次完成
-
制袋长度可调
-
横封后,自动切断分离、断口锯齿状
-
横封切断速度可调
-
自动纵封,方格花纹
-
变频调速,运行可靠稳定、变速均匀,过载自动停机
Main feature
-
Counting 、film pay-out、packing are all completed in the machine.
-
The hauling speed of where bag be made can be adjusted.
-
Automatic separate after cross-end, Pillow shape.
-
The speed where cross-end be cut can be adjusted.
-
Automatic sealing the middle of bag,pane impression.
-
By frequency converting the speed adjusting comture,which means
-
it is a power saving machine,the operation is reliable ,also it will take on the function of overload protection.
技术规格 Main technical data
适用吸管规格
Specification of the straw |
长度 Length |
120mm~200mm |
管径 Diameter |
¢3mm~¢6mm
可定制
Customizable |
生产能力
speed |
30~70包/分钟
packages/min |
包装材料
Specification of the film |
热封膜
Thermal sealing film
BOPP、 PE、OPP、etc |

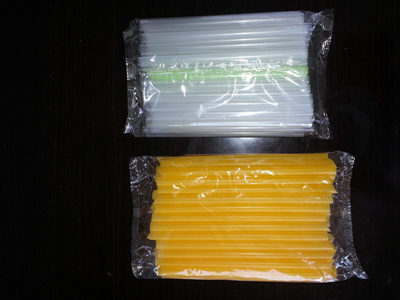

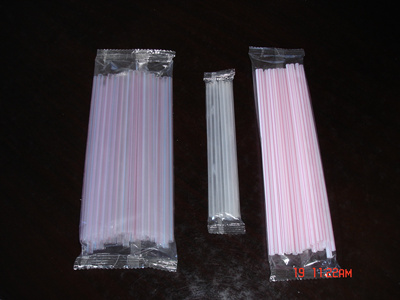

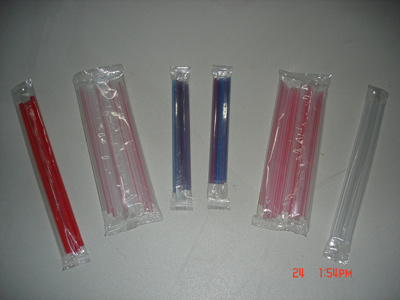

包装成品规格
Specification of the final product |
形状 Outer shape |
枕式包装、锯齿切口
Pillow shape、margin is of sawtooth shape |
支数 number |
4~40支/包(pcs/package)
可定制
Customizable |
设备尺寸 mechnical dimension |
L× W×H |
1700mm×800mm×1500mm |
装箱尺寸 Packaged dimension |
L× W×H |
1800mm×1000mm×1600mm |
电气功率 Power capacity |
驱动马达
Driving motor |
0.75Kw |
电源 Power source |
380v 、3相(phase)、50Hz |
设备重量 Weight |
400kgs |
