液体、粉剂、颗粒包装机系列

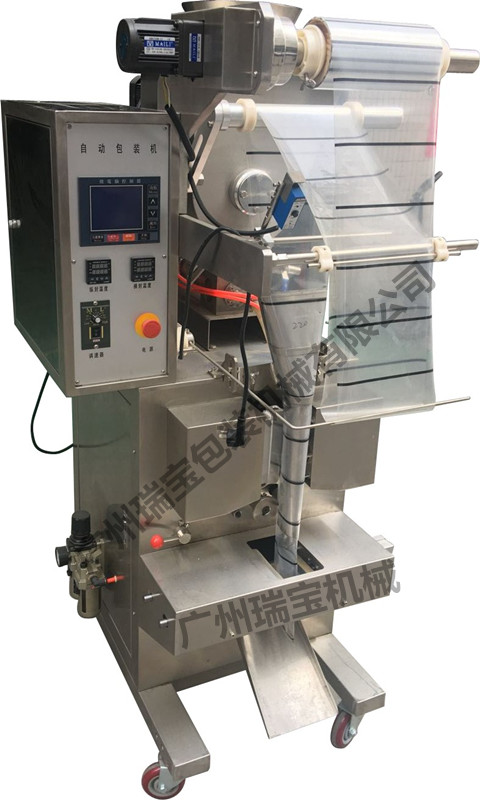

  • 液体自动包装机SJ-Y1

  • 液体自动包装机SJ-Y1

  • 【液体自动包装机SJ-Y1】详细信息



  • 特点 Features

    背封，三边封，四边封包装形式

    包装运行数据及调节在显示屏上直观显示，直接操作

    装配光电控制装置保证包装袋图案完整

    自动完成制袋，计量，充填，封合，断切，计数，打印批号

    壳体及物料接触部位使用不锈钢材料
    Back sealing, three-side sealing, four-side sealing packing method
    The packing data and adjustment can be displayed on the screen. The user can directly operate it on it.
    Assembled with a photoelectric controller to ensure that its packing bag figure are perfect

    It can automatically finish making-bag, metering, filling, sealing, cutting, counting and printing batch number.
    The body and the parts touching the material are made of stainless steel.
    适合物料 Suitable material

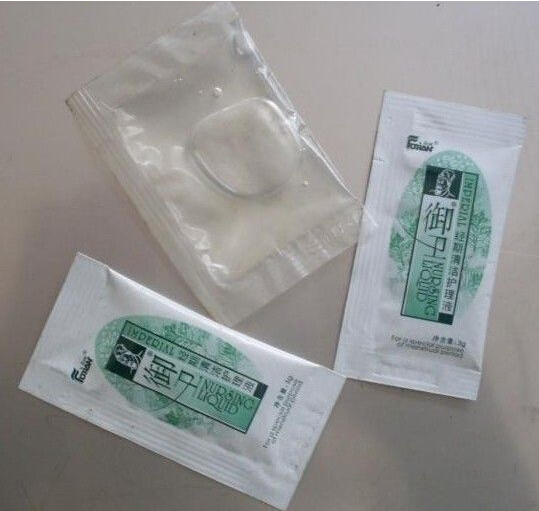

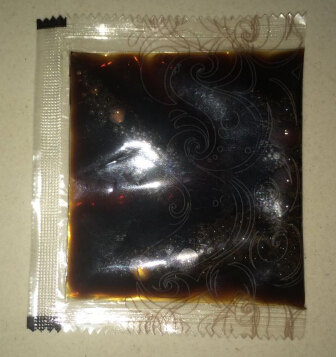

    洗发水，护发素，洗液，酱油，止咳露，农药，饮料，酒，酱料，各类液体

    It is applicable for packing the liquid like hairdressing water, hair conditioner, lotion, soy sauce, cough syrup, agricultural chemicals, wine and sauce.
    技术规格 Technical specifications
    型号 Type SJ-Y1
    制成袋长 mm bag-making length 50-150
    制成袋宽 mm Bag-making width 25-120
    包装薄膜宽度 mm Packing film width 60-240
    包装容量 ml Packing capacity 5-100
    包装速度 bags/min Packing speed 30-60
    功率 Kw power 1.6
    气源 Mpa air power 0.65
    耗气量 L/min air consumption 150
    外形尺寸 mm Overall Dimension 760×1380×1700
    整机质量 Kg Weight 300
